Automatic Expanded Metal Sheet Diamond Mesh Making Machine With Different Types
Application:
Expanded metal machine used for produce expanded metal mesh.Material can be galvanized steel,aluminum,stainless steel,titanium,copper,nickel,ect.

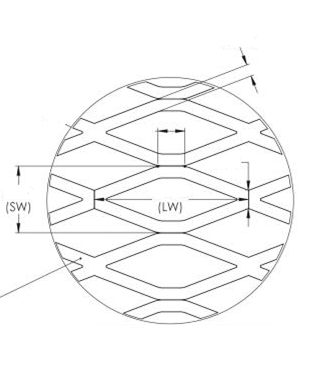

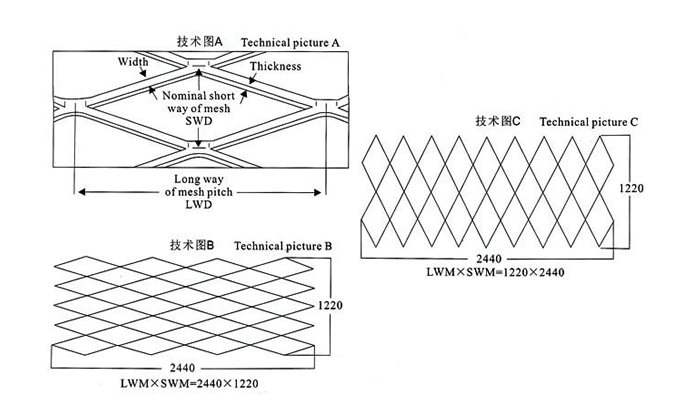

The most common expanded metal mesh hole style is diamond style,like the photo below:

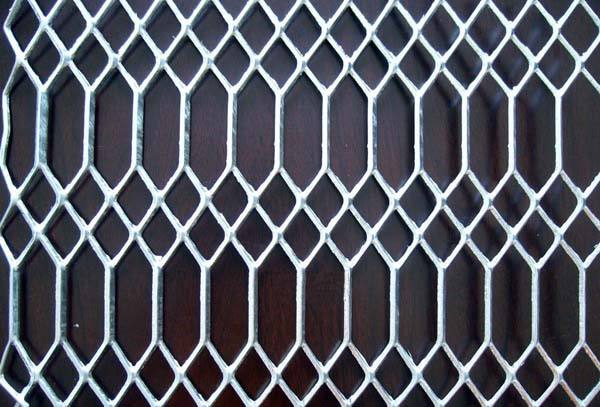

Expanded metal mesh hole style also can be hexagon,and other kind of mesh style:
The light expanded metal mesh widely used for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.Heavy expanded metal mesh used for road fence,sports venues fence,decoration,scaffold,building,ect.
Advantages:
- Expanded metal machine have various of machine types,different working width and different thickness.
- Automatic/PLC control is advanced than before,and can operate easily.
- Designed high speed type for produce expanded metal mesh with small LWD&SWD and small thickness.
- Production no waste material,can save costing,avoid waste.
Technical parameter of expanded metal machine JQ25 series:
| Expanded metal machine |
| Working width | 600mm-4000mm |
| Max thickness | 0.2-10mm |
| Distance of feeding | 0-30mm |
| Motor | 2.2KW-75KW |
| Voltage | 220/380v 50Hz 3phases |
Some of the expanded metal machine detailed parameter:
| Model | Material thickness | Material max width | Distance of feeding | Stroke per min | Motor |
| JQ25-6.3 | Max 1.0mm | 600mm | 0-3.0mm | 300/min | 2.2kw |
| JQ25-16 | Max 1.2mm | 1000mm | 0-3.0mm | 150/min | 3kw |
| JQ25-25 | Max 1.5mm | 1250mm | 0-3.0mm | 150/min | 4kw |
| JQ25-40 | Max 1.5mm | 1500mm | 0-5.0mm | 150/min | 7.5kw |
| JQ25-63 | Max 4.0mm | 2000mm | 0-10mm | 60/min | 15kw |
| JQ25-100 | Max 6.0mm | 2000mm | 0-10mm | 52/min | 22kw |
| JQ25-160 | Max 8.0mm | 2100mm | 0-10mm | 35/min | 45kw |
